    H05RN-F Ordinary Duty Rubber Cable

    Introduction:
    FEATURES
    ★ Maximum conductor operating temperature: +60°C
    ★ Maximum conductor temperature during short circuit: +200°C
    ★ Lowest ambient temperature for fixed installation: -40°C
    ★ Lowest ambient temperature for mobile installation: -25°C
    ★ Bending radius: 4D for fixed installation, 8D for mobile installation

    GET A QUOTE


    Applications




    H05RN-F flexible cabl is suitable to use for general use in domestic premises, kitchens, offices and for supplying applinces where the cables are subjected to low mechanical stresses (eg. vaccum cleaners, cooking appliances). Also suitable for permanent use outdoors for ordinary duty applications. Supply of electricity and communications in buildings and other civil engineering works with the objective of limiting the generation and spread of fire.

    Construction


    Rated Voltage: 300/500V
    Conductor: Fine stranded bare copper, class 5
    Insulation: Ethylene-propylene rubber ( EPR) type EI4 in according to EN 50363-1
    Outer Sheath: Black, Chlorinated Polyethylene rubber (CPE) EM2 in according to EN 50363-2-1

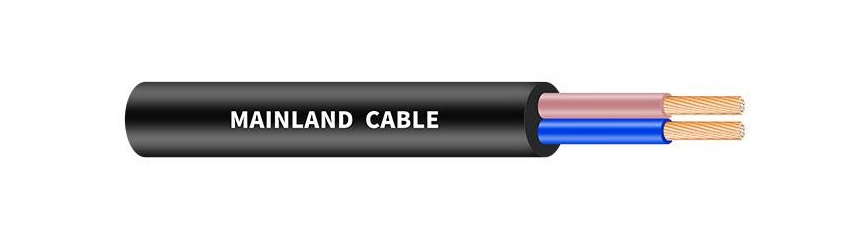

    H05RN-F Ordinary Duty Rubber Cable

    Core Identification


    2 core---Blue, Brown
    3 core---Green/Yellow, Blue, Brown
    4 core---Green/Yellow, Brown, Black, Grey

    STANDARDS: EN 60228, EN 60332-1-2, EN 50525-2-21:2011
    APPROVALS: VDE, CE, CPR, UKCA

    SIZE RANGE:
    Cable Type No.of Cores Size(mm²)
    H05RN-F 2 0.75~1.0
    H05RN-F 3 0.75~1.0
    H05RN-F 4 0.75~1.0


    Certifications


    Mainland Cable manufactures a wide range wires and cables, covering UL portable and industrial cords, VDE harmonized rubber cable and PVC cables, power cords, extension cords, cable reels, welding cables, control cables, crane & hoist cables. Mainland Wire & Cable is qualified by ISO9001 and ISO14001, CCC, UL, CSA, MSHA, BS, SAA, TLC, CE, VDE, PSE, KC, JIS, UL-BRAZIL, SASO, etc.,



    Packaging & Shipping

    1. Packing Details:
    1) Packing Lengths: 100M, 500M, 1000M or other lengths are available according to client's request.
    2) Packing Material: plywood drum, wooden drum etc are available.

    2. Shipping Details:
    1) Lead Times: 25-35 working days or negociation.
    2) Transport Modes: Sea, Express(DHL,UPS,FEDEX, TNT) or request.
